AP7350-45CF4-7
IC REG LIN 4.5V 150MA X2WLB0606Manufacturer: Diodes Incorporated
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

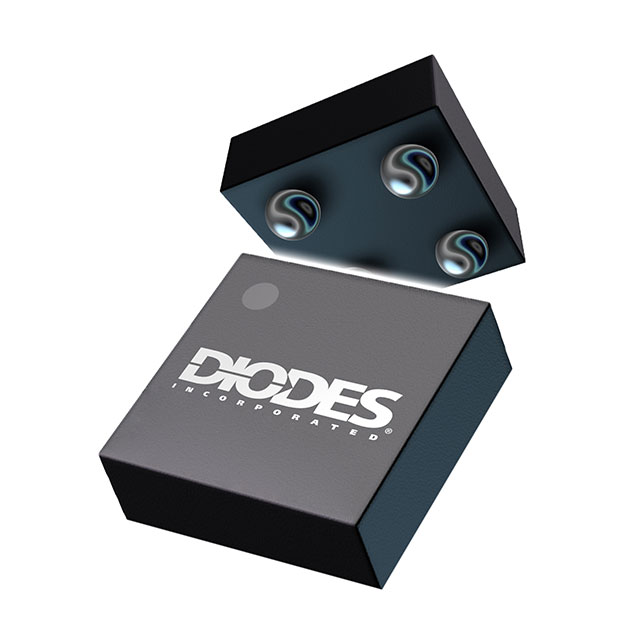

Diodes Incorporated AP7350-45CF4-7 is a fixed 4.5V positive linear voltage regulator with an output current capability of 150mA. This device features a low quiescent current of 700 nA and a dropout voltage of 0.35V at 150mA, making it suitable for power-sensitive applications. The regulator includes an enable pin for enhanced control and protection features such as current limiting. Supplied in a compact X2-WLB0606-4 package, this component is designed for surface mounting and is delivered on tape and reel. Its specifications lend themselves to use in consumer electronics, portable devices, and battery-powered systems. The input voltage range is up to 5.25V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, WLBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 700 nA |
| Voltage - Input (Max) | 5.25V |
| Number of Regulators | 1 |
| Supplier Device Package | X2-WLB0606-4 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 4.5V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | 0.35V @ 150mA |
| Protection Features | Current Limit |
