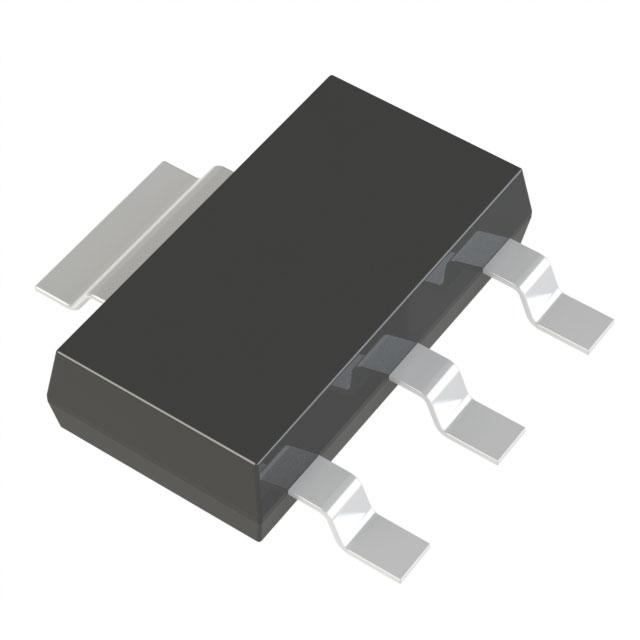

ZMY20MTA
SENSOR MR ANALOG SOT223Manufacturer: Diodes Incorporated
Categories: Linear, Compass (ICs)
Quality Control: Learn More
The Diodes Incorporated ZMY20MTA is a magnetoresistive sensor designed for X and Y axis magnetic field detection. This component utilizes magnetoresistive technology to provide an analog voltage output proportional to the applied magnetic field. Packaged in a SOT-223-3 (TO-261-4, TO-261AA) surface-mount configuration, the ZMY20MTA is suitable for automated assembly processes. Key features include internal magnet compensation and operation within a temperature range of -25°C to 125°C. This device is commonly employed in applications requiring precise position sensing and contactless detection, such as automotive systems, industrial automation, and consumer electronics. The ZMY20MTA is supplied on a tape and reel for efficient handling and integration into high-volume manufacturing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Internal Magnet |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-4, TO-261AA |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Axis | X, Y |
| Operating Temperature | -25°C ~ 125°C |
| Voltage - Supply | 12V |
| Bandwidth | - |
| Technology | Magnetoresistive |
| Resolution | - |
| Sensing Range | - |
| Current - Output (Max) | - |
| Current - Supply (Max) | - |
| Supplier Device Package | SOT-223-3 |
