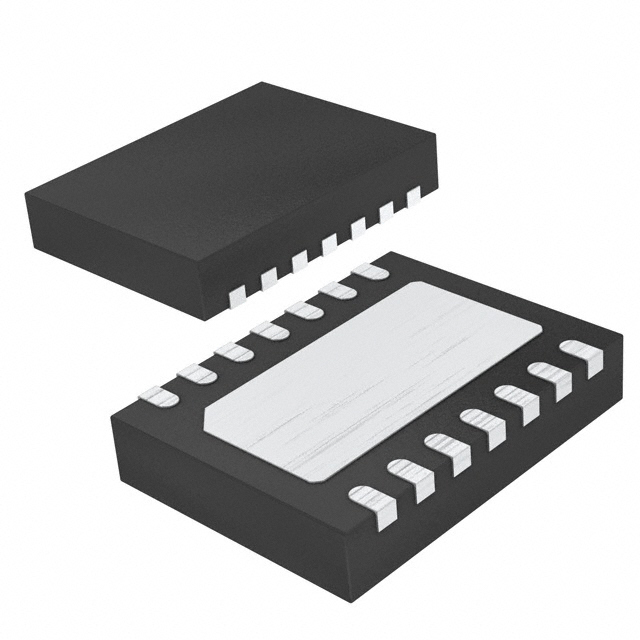

ZXLD1322DCCTC
IC LED DRV RGLTR PWM 700MA 14DFNManufacturer: Diodes Incorporated
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) PWM Dimming 700mA DFN4030-14
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-UFDFN Exposed Pad |
| Voltage - Output | 18V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 600kHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Applications | Backlight, Lighting |
| Current - Output / Channel | 700mA |
| Internal Switch(s) | Yes |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | DFN4030-14 |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 15V |
