PAM2805AF_02
LED LIGHTING DRIVERSManufacturer: Diodes Incorporated
Categories: LED Drivers
Quality Control: Learn More

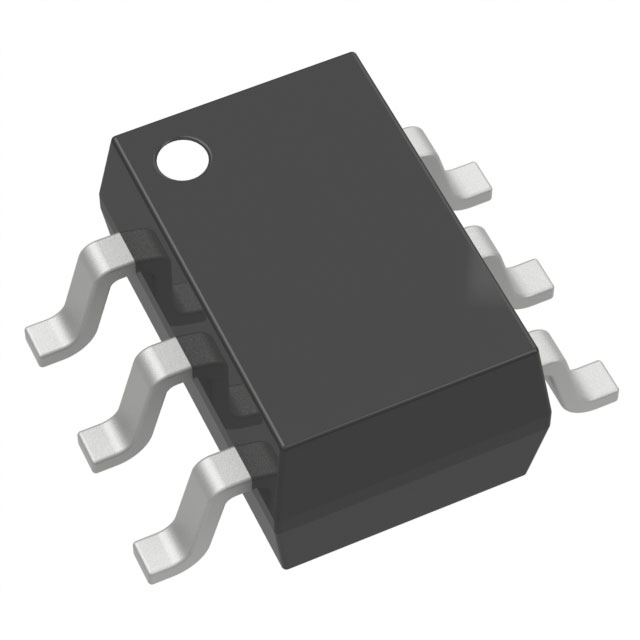

Diodes Incorporated PAM2805AF-02 is a high-efficiency, 1MHz step-up (boost) DC-DC regulator designed for LED lighting applications. This single-output LED driver IC delivers up to 750mA, featuring internal switch functionality and adjustable dimming capabilities. Operating from a supply voltage range of 0.9V to 3.2V, it is ideal for power-sensitive designs. The PAM2805AF-02 is housed in a compact SOT-23-6 package, suitable for surface mount assembly. This component is widely utilized in demanding environments such as camera flash modules within the mobile and consumer electronics industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-23-6 |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Camera Flash |
| Current - Output / Channel | 750mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | SOT-23-6 |
| Dimming | Yes |
| Voltage - Supply (Min) | 0.9V |
| Voltage - Supply (Max) | 3.2V |
