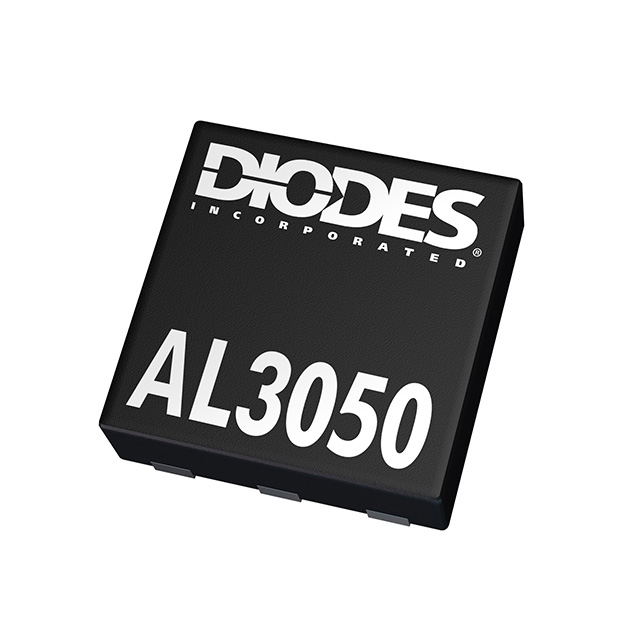

AL3050FDC-7
IC LED DRVR RGLTR PWM 40MA 6DFNManufacturer: Diodes Incorporated
Categories: LED Drivers
Quality Control: Learn More
The Diodes Incorporated AL3050FDC-7 is a single-output, step-up DC-DC LED driver regulator. This device offers PWM dimming control with a typical output current of 40mA and a maximum output voltage of 30V. Designed for efficient operation, it features an integrated switch and a fixed switching frequency of 750kHz, enabling compact external component selection. The AL3050FDC-7 operates from a supply voltage range of 2.7V to 5.5V, making it suitable for battery-powered applications. Its U-DFN2020-6 (Type S) package with an exposed pad facilitates efficient heat dissipation in surface-mount designs. This component is commonly utilized in backlight applications across various industries. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UDFN Exposed Pad |
| Voltage - Output | 30V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 750kHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 40mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | U-DFN2020-6 (Type S) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
