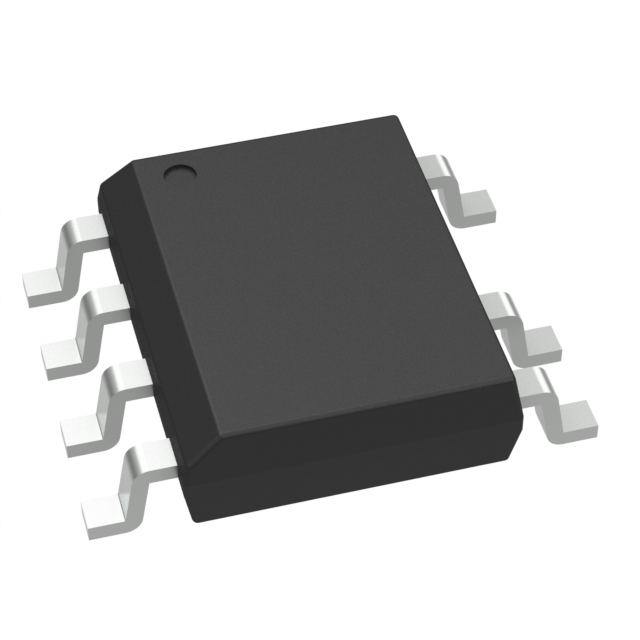

AL1697-20CS7-13
IC LED DRIVER OFFL TRIAC 2A 7SOManufacturer: Diodes Incorporated
Categories: LED Drivers
Quality Control: Learn More
The Diodes Incorporated AL1697-20CS7-13 is an AC/DC offline switcher LED driver IC. This single-output component supports both step-down (buck) and step-up (boost) topologies, enabling flexible power conversion for LED lighting solutions. Featuring triac dimming capability and an integrated switch, it is designed to drive LED loads up to 2A. The device operates within a supply voltage range of 8.5V to 18V, with an output voltage capability of up to 600V. Its 7-SO (7-SOIC) package is suitable for surface mount applications and operates across an extended temperature range of -40°C to 105°C (TA). This component is commonly utilized in general lighting and architectural lighting applications requiring efficient and dimmable LED control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width), 7 Leads |
| Voltage - Output | 600V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | - |
| Type | AC DC Offline Switcher |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Applications | - |
| Current - Output / Channel | 2A |
| Internal Switch(s) | Yes |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | 7-SO |
| Dimming | Triac |
| Voltage - Supply (Min) | 8.5V |
| Voltage - Supply (Max) | 18V |
