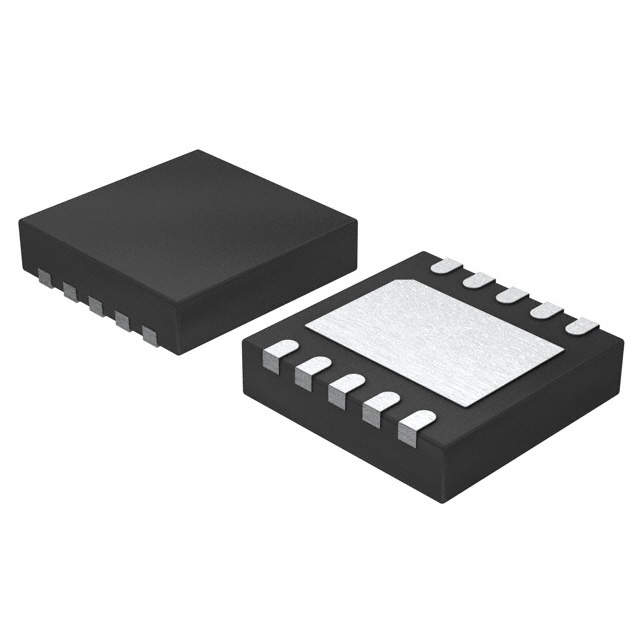

DGD05473FNQ-7
IC GATE DRV HALF-BRDG DFN3030-10Manufacturer: Diodes Incorporated
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC CMOS/TTL U-DFN3030-10
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Voltage - Supply | 4.7V ~ 14V |
| Input Type | CMOS/TTL |
| High Side Voltage - Max (Bootstrap) | 50 V |
| Supplier Device Package | U-DFN3030-10 |
| Rise / Fall Time (Typ) | 16ns, 12ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 2.5A |
| Grade | Automotive |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
Request a Quote
