DGD0507FN-7

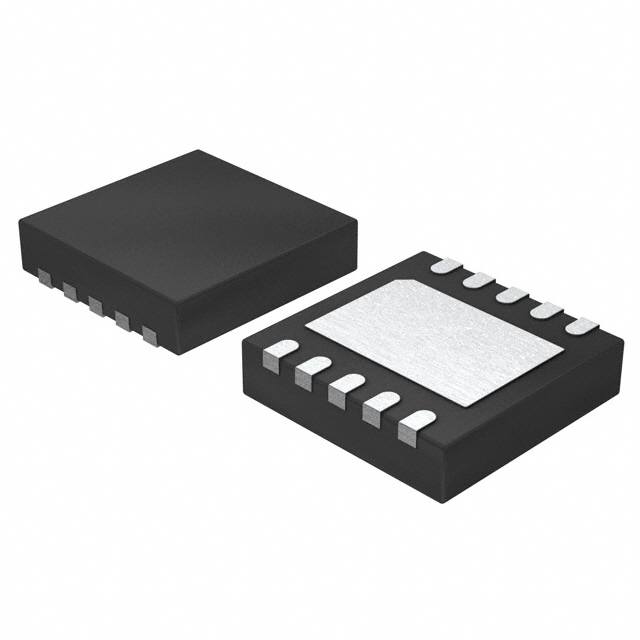

IC GATE DRV HALF-BRDG DFN3030-10Manufacturer: Diodes Incorporated
Categories: Gate Drivers
Quality Control: Learn More
Diodes Incorporated DGD0507FN-7 is a half-bridge gate driver IC designed for efficient switching of N-channel MOSFETs. This component features independent channels with peak output currents of 1.5A sourcing and 2A sinking, facilitating rapid turn-on and turn-off with typical rise and fall times of 23ns and 18ns, respectively. The device operates from an 8V to 14V supply voltage and supports a high-side bootstrap voltage up to 50V. Input compatibility includes CMOS/TTL logic levels with VIL/VIH thresholds of 0.8V and 2.4V. Housed in a 10-WFDFN exposed pad package (W-DFN3030-10) suitable for surface mounting, this driver is ideal for applications within the automotive and industrial sectors. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 8V ~ 14V |
| Input Type | CMOS/TTL |
| High Side Voltage - Max (Bootstrap) | 50 V |
| Supplier Device Package | W-DFN3030-10 |
| Rise / Fall Time (Typ) | 23ns, 18ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 2A |
| Programmable | Not Verified |
