DMTH43M8LPDW-13
LINEAR ICManufacturer: Diodes Incorporated
Categories: FET, MOSFET Arrays
Quality Control: Learn More

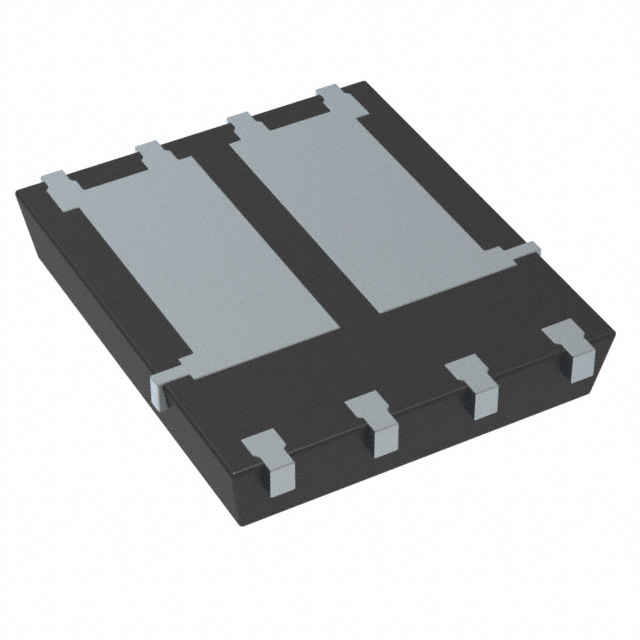

Mosfet Array 40V 110A (Tc) 3W (Ta) 80.2W (Tc) Surface Mount PowerDI5060-8 (Type UXD)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 110A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.2mOhm @ 20A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 41.9nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PowerDI5060-8 (Type UXD) |
| Grade | - |
| Qualification | - |
Request a Quote
