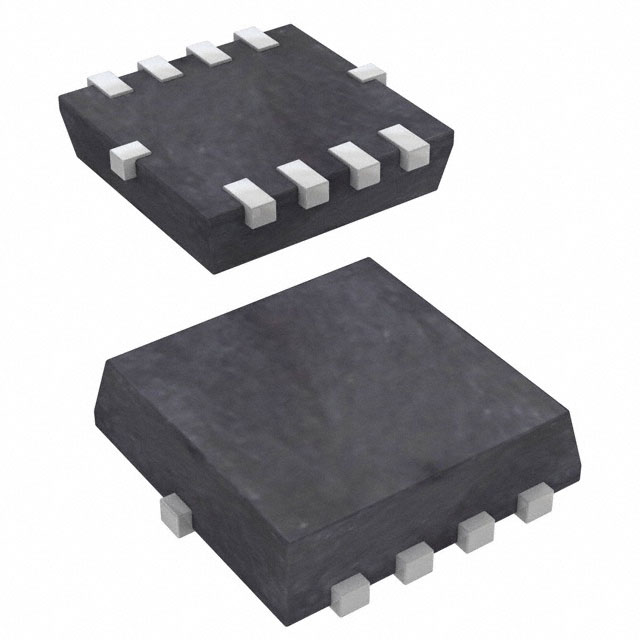

DMT47M2LDV-7
MOSFET 2N-CH 40V 11.9A PWRDI3333Manufacturer: Diodes Incorporated
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 40V 11.9A (Ta), 30.2A (Tc) 2.34W (Ta), 14.8W (Tc) Surface Mount PowerDI3333-8 (Type UXC)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.34W (Ta), 14.8W (Tc) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 11.9A (Ta), 30.2A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 891pF @ 20V |
| Rds On (Max) @ Id, Vgs | 10.8mOhm @ 20A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 14nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Supplier Device Package | PowerDI3333-8 (Type UXC) |
