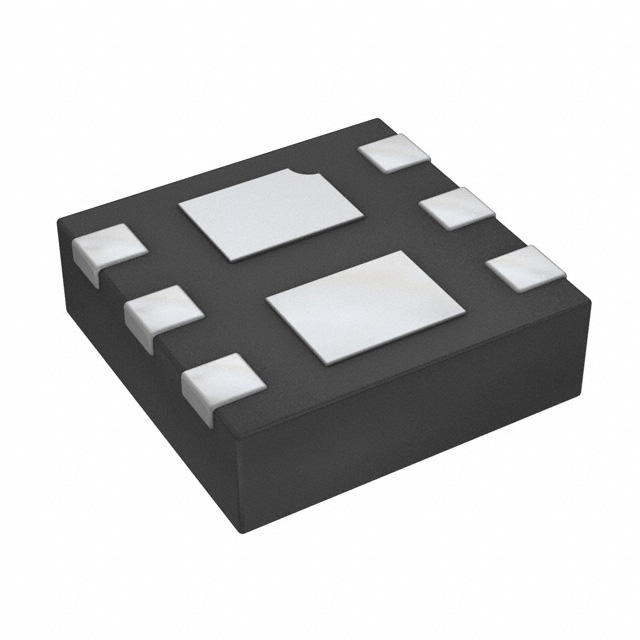

DMP2200UFCL-7
MOSFET 2P-CH 20V 1.7A 6UDFNManufacturer: Diodes Incorporated
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 1.7A 660mW Surface Mount U-DFN1616-6 (Type F)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 P-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 660mW |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.7A |
| Input Capacitance (Ciss) (Max) @ Vds | 184pF @ 10V |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 2A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 2.2nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Supplier Device Package | U-DFN1616-6 (Type F) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
