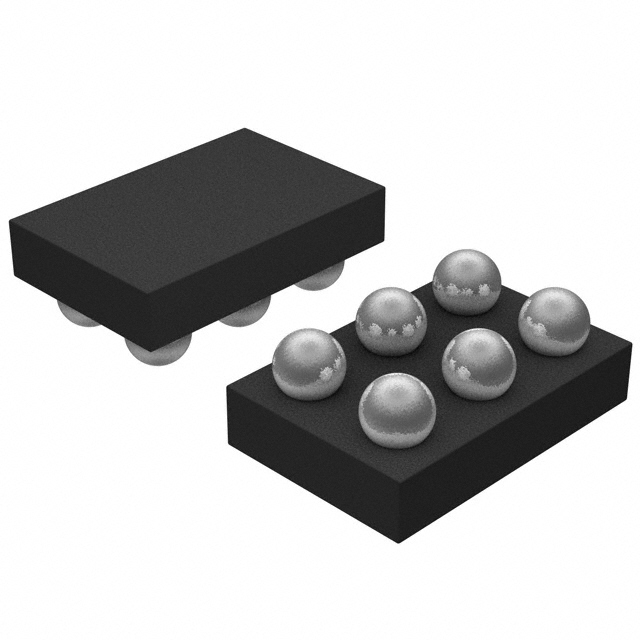

DMP2108UCB6-7
MOSFET 2P-CH 20V 2.25A 6UWLBManufacturer: Diodes Incorporated
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Diodes Incorporated DMP2108UCB6-7 is a 20V, dual P-channel MOSFET array designed for high-density applications. This component offers a continuous drain current (Id) of 2.25A at 25°C with a low on-resistance of 55mOhm at 1A and 4.5V. The device features a gate charge (Qg) of 2.1nC at 4.5V and an input capacitance (Ciss) of 269pF at 10V. Packaged in a compact 6-UFBGA, WLBGA (U-WLB1510-6) with surface mount capability, it is supplied on tape and reel. The maximum power dissipation is 840mW, and it operates across a temperature range of -55°C to 150°C. This MOSFET array is suitable for use in power management and portable electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFBGA, WLBGA |
| Mounting Type | Surface Mount |
| Configuration | 2 P-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 840mW |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 2.25A |
| Input Capacitance (Ciss) (Max) @ Vds | 269pF @ 10V |
| Rds On (Max) @ Id, Vgs | 55mOhm @ 1A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 2.1nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Supplier Device Package | U-WLB1510-6 |
