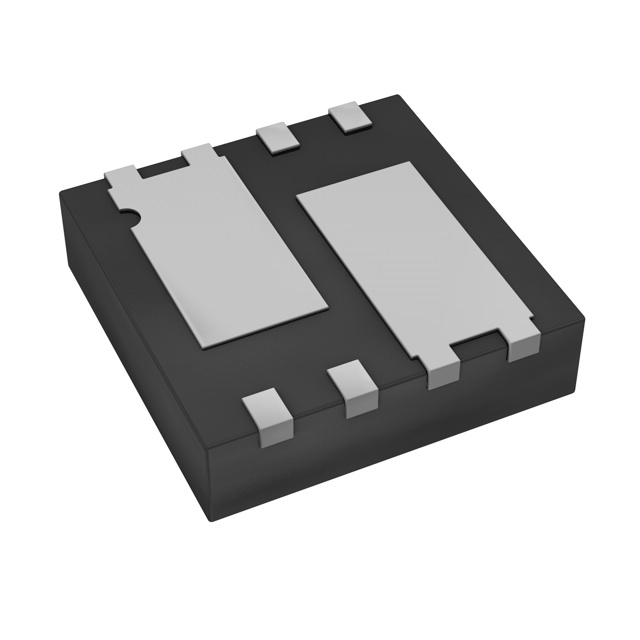

DMN3016LDN-7
MOSFET 2N-CH 30V 7.3A 8VDFNManufacturer: Diodes Incorporated
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 7.3A 1.1W Surface Mount V-DFN3030-8 (Type J)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.1W |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 7.3A |
| Input Capacitance (Ciss) (Max) @ Vds | 1415pF @ 15V |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 11A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 25.1nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | V-DFN3030-8 (Type J) |
