DMN3013LFG-7
MOSFET 2N-CH 30V 9.5A PWRDI3333Manufacturer: Diodes Incorporated
Categories: FET, MOSFET Arrays
Quality Control: Learn More

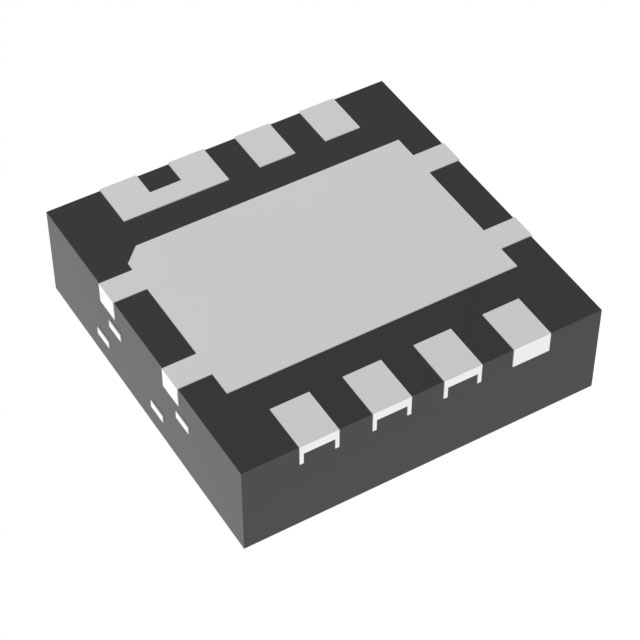

Mosfet Array 30V 9.5A (Ta), 15A (Tc) 2.16W (Ta) Surface Mount PowerDI3333-8 (Type D)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerLDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.16W (Ta) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 9.5A (Ta), 15A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 600pF @ 15V |
| Rds On (Max) @ Id, Vgs | 14.3mOhm @ 4A, 8V |
| Gate Charge (Qg) (Max) @ Vgs | 5.7nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Supplier Device Package | PowerDI3333-8 (Type D) |
