DMN2991UDA-7B
MOSFET 2N-CH 20V 0.45A 6DFNManufacturer: Diodes Incorporated
Categories: FET, MOSFET Arrays
Quality Control: Learn More

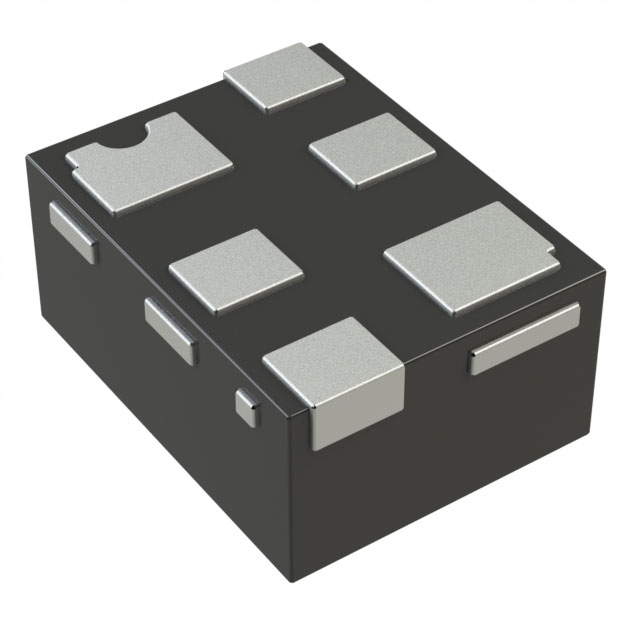

Mosfet Array 20V 450mA (Ta) 310mW (Ta) Surface Mount X2-DFN0806-6
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 6-SMD, No Lead |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 310mW (Ta) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 450mA (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 21.5pF @ 16V |
| Rds On (Max) @ Id, Vgs | 990mOhm @ 100mA, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 0.35nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | X2-DFN0806-6 |
Request a Quote
