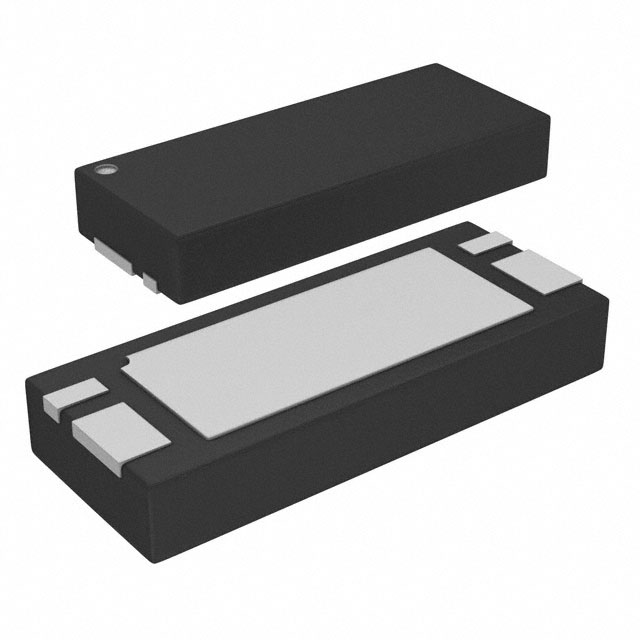

DMN2011UFX-7
MOSFET 2N-CH 20V 12.2A 4VDFNManufacturer: Diodes Incorporated
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 12.2A (Ta) 2.1W Surface Mount V-DFN2050-4
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Common Drain |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.1W |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 12.2A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 2248pF @ 10V |
| Rds On (Max) @ Id, Vgs | 9.5mOhm @ 10A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 56nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | V-DFN2050-4 |
