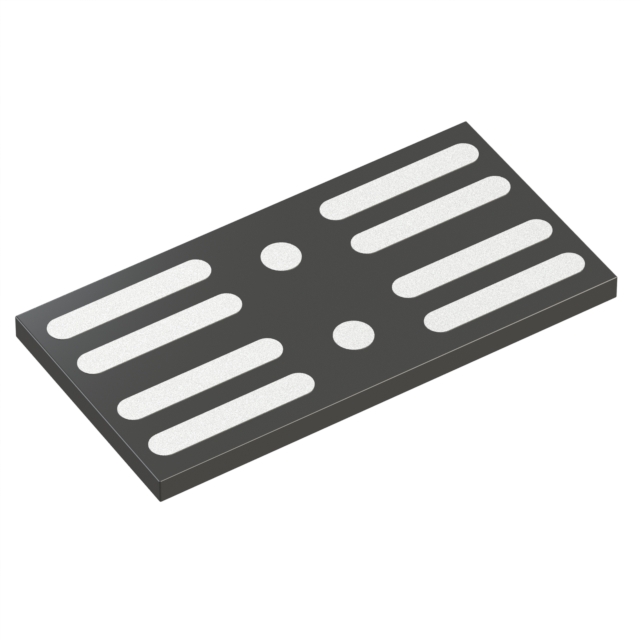

DMN12M8UCA10-7
MOSFET 2N-CH 12V 25A X4-DSN3015Manufacturer: Diodes Incorporated
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 12V 25A (Ta) 1.4W Surface Mount X4-DSN3015-10
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-SMD, No Lead |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Common Drain |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.4W |
| Drain to Source Voltage (Vdss) | 12V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 2504pF @ 10V |
| Rds On (Max) @ Id, Vgs | 2.8mOhm @ 6A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 36.4nC @ 4V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.4V @ 1.11mA |
| Supplier Device Package | X4-DSN3015-10 |
