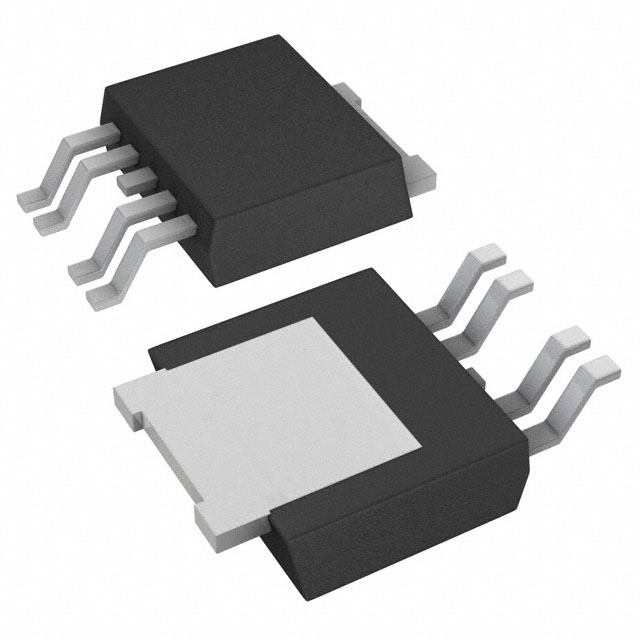

DMG4511SK4-13
MOSFET N/P-CH 35V 5.3A TO252-4LManufacturer: Diodes Incorporated
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 35V 5.3A, 5A 1.54W Surface Mount TO-252-4L
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel, Common Drain |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.54W |
| Drain to Source Voltage (Vdss) | 35V |
| Current - Continuous Drain (Id) @ 25°C | 5.3A, 5A |
| Input Capacitance (Ciss) (Max) @ Vds | 850pF @ 25V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 8A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 18.7nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | TO-252-4L |
