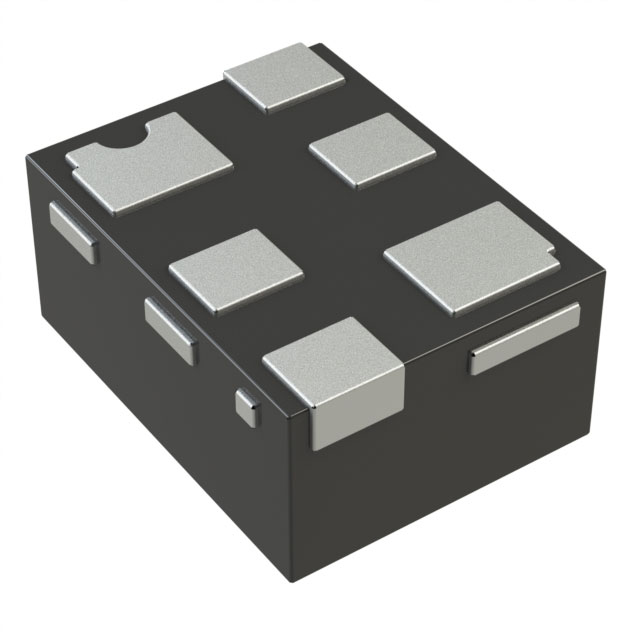

DMC31D5UDA-7B
MOSFET N/P-CH 30V 0.4A 6DFNManufacturer: Diodes Incorporated
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 400mA (Ta) 370mW (Ta) Surface Mount X2-DFN0806-6
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel Complementary |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 370mW (Ta) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 400mA (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 22.6pF @ 15V |
| Rds On (Max) @ Id, Vgs | 1.5Ohm @ 100mA, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 0.38nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | X2-DFN0806-6 |
Request a Quote
