SBRT40V100CT
DIODE ARR SBR 100V 20A TO220-3Manufacturer: Diodes Incorporated
Categories: Diode Arrays
Quality Control: Learn More

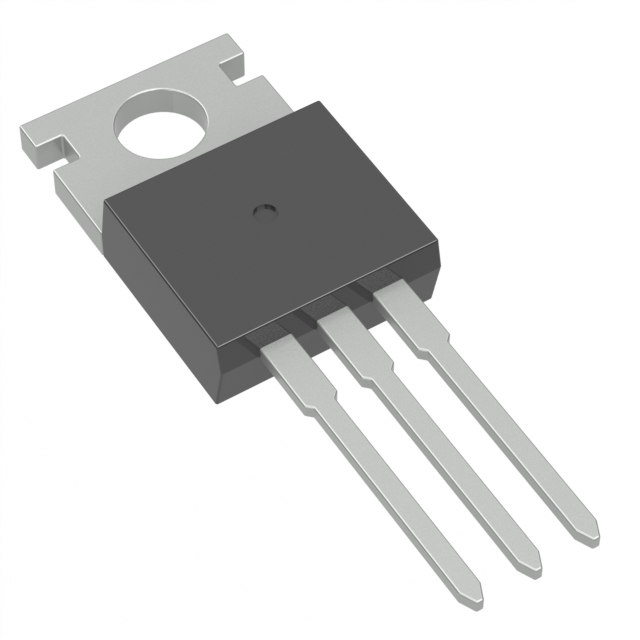

Diodes Incorporated SBRT40V100CT is a TrenchSBR Super Barrier diode array featuring a 1 pair common cathode configuration. This through-hole component, housed in a TO-220-3 package, offers a maximum DC reverse voltage of 100 V and an average rectified current capability of 20 A per diode. It exhibits a forward voltage drop of 730 mV at 20 A and a reverse leakage current of 300 µA at 100 V. The operating junction temperature range is -55°C to 150°C. Its fast recovery characteristic, with a speed defined as <= 500 ns, > 200 mA (Io), makes it suitable for applications in power supply, automotive, and industrial control systems.
Additional Information
Series: TrenchSBRRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Super Barrier |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 20A |
| Supplier Device Package | TO-220-3 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 730 mV @ 20 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 100 V |
