SBR30150CTFP

DIODE ARR SBR 150V 15A ITO220AB

Manufacturer: Diodes Incorporated

Categories: Diode Arrays

Quality Control: Learn More

Diodes Incorporated SBR® series SBR30150CTFP is a dual common cathode Super Barrier rectifier. This component offers a 150V reverse voltage rating and a 15A average rectified current per diode. With a low forward voltage drop of 920mV at 15A, it minimizes power loss. The device features a fast recovery time, specified as less than or equal to 500ns for currents above 200mA. The SBR technology provides a significant reduction in forward voltage drop compared to standard Schottky diodes. Packaged in an isolated tab ITO-220AB (TO-220-3 Full Pack), this through-hole mounted device is suitable for applications in power supplies, solar inverters, and automotive systems where efficient rectification and thermal management are critical. Operating junction temperature range is -65°C to 175°C, with a reverse leakage of 100 µA at 150V.

Additional Information

Series: SBR®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:
Technical Details:
PackagingTube

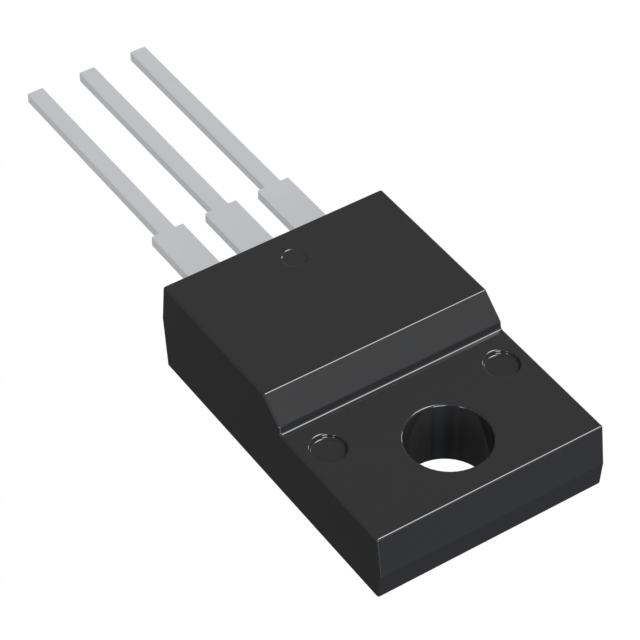

Package / CaseTO-220-3 Full Pack, Isolated Tab
Mounting TypeThrough Hole
SpeedFast Recovery =< 500ns, > 200mA (Io)
TechnologySuper Barrier
Diode Configuration1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode)15A
Supplier Device PackageITO-220AB
Operating Temperature - Junction-65°C ~ 175°C
Voltage - DC Reverse (Vr) (Max)150 V
Voltage - Forward (Vf) (Max) @ If920 mV @ 15 A
Current - Reverse Leakage @ Vr100 µA @ 150 V
