SBR10150CTFP
DIODE ARR SBR 150V 5A TO220FManufacturer: Diodes Incorporated
Categories: Diode Arrays
Quality Control: Learn More
Diodes Incorporated SBR® series SBR10150CTFP is a 150V, 5A dual diode array featuring a common cathode configuration. This Super Barrier technology device offers a low forward voltage of 920mV at 5A and a reverse leakage of 250µA at 150V. The component operates across a junction temperature range of -65°C to 150°C. Packaged in a TO-220F-3 (TO-220-3 Full Pack) for through-hole mounting, this device is suitable for applications in power supply rectification, industrial power, and automotive electronics. The speed is characterized as standard recovery exceeding 500ns at over 200mA.
Additional Information
Series: SBR®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

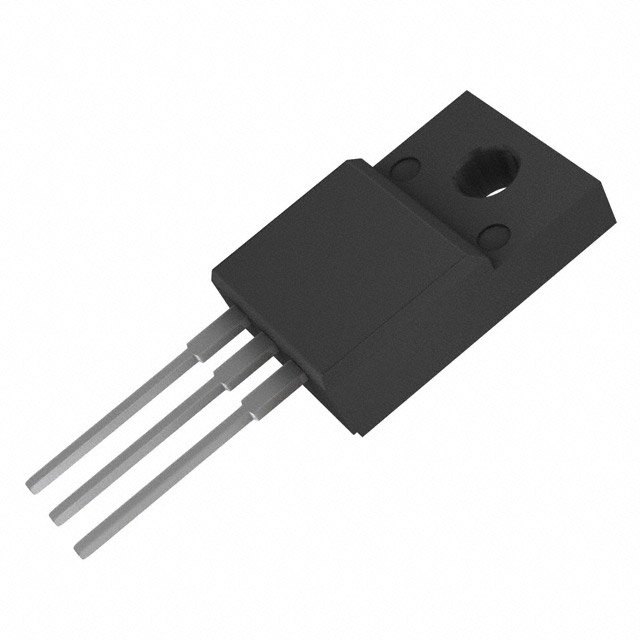

| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Super Barrier |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 5A |
| Supplier Device Package | TO-220F-3 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 5 A |
| Current - Reverse Leakage @ Vr | 250 µA @ 150 V |
