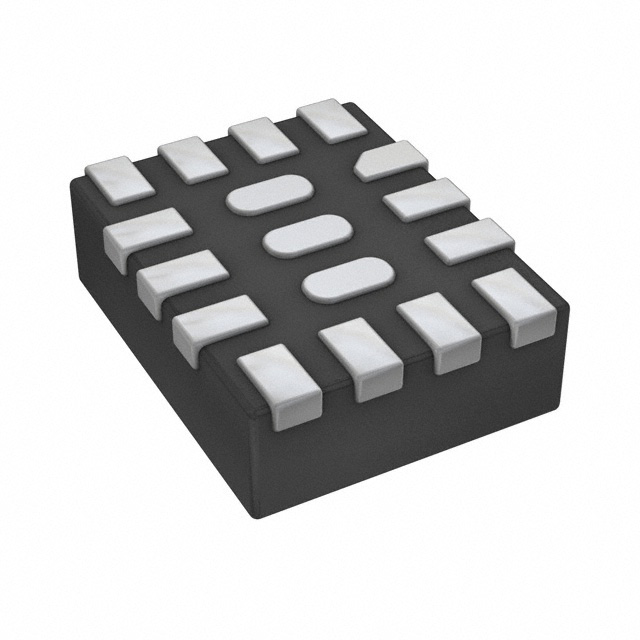

PAM2322AGEAR
IC REG BUCK ADJ/0.9V W-FLGA2520Manufacturer: Diodes Incorporated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Diodes Incorporated PAM2322AGEAR is a dual-output, 1.2MHz synchronous buck switching regulator. This device offers adjustable output voltage capabilities, with fixed options at 0.9V and 1.8V. It supports input voltages ranging from 2.7V to 5.5V, with a maximum output current of 1A and 2A per channel. The PAM2322AGEAR features a compact 17-WFLGA package, suitable for surface mount applications. Its high switching frequency and integrated synchronous rectifier minimize external component count and improve power conversion efficiency. This regulator is commonly employed in portable electronics, power management systems, and consumer devices requiring efficient, compact voltage regulation. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 17-WFLGA |
| Output Type | Adjustable (Fixed) |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 1A, 2A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | W-FLGA2520-17 |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.9V (1.8V) |
