PAM2316AGCADJ
IC REG BUCK ADJ 2A 8TDFNManufacturer: Diodes Incorporated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Diodes Incorporated's PAM2316AGCADJ is a 2A synchronous buck switching regulator designed for high-efficiency power conversion. This adjustable output IC features a 2.5MHz switching frequency, enabling a compact solution with excellent transient response. The device operates from a 2.7V to 5.5V input range and provides a positive adjustable output voltage, with a minimum fixed output of 1V. Its integrated synchronous rectifier eliminates the need for an external Schottky diode, improving efficiency and reducing component count. Housed in an 8-TDFN (2x2) package with an exposed pad for enhanced thermal performance, the PAM2316AGCADJ is suitable for surface mount applications. This component is utilized in various industries including consumer electronics, portable devices, and industrial control systems where efficient step-down voltage regulation is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

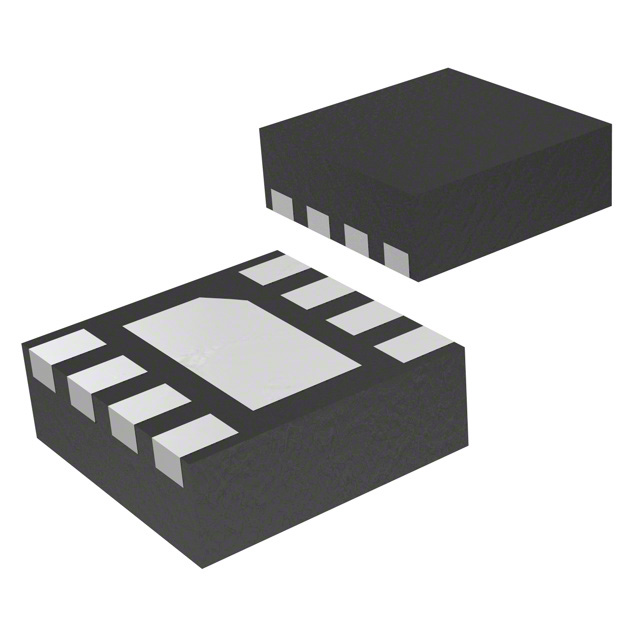

| Package / Case | 8-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2.5MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 8-TDFN (2x2) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 3.3V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 1V |
