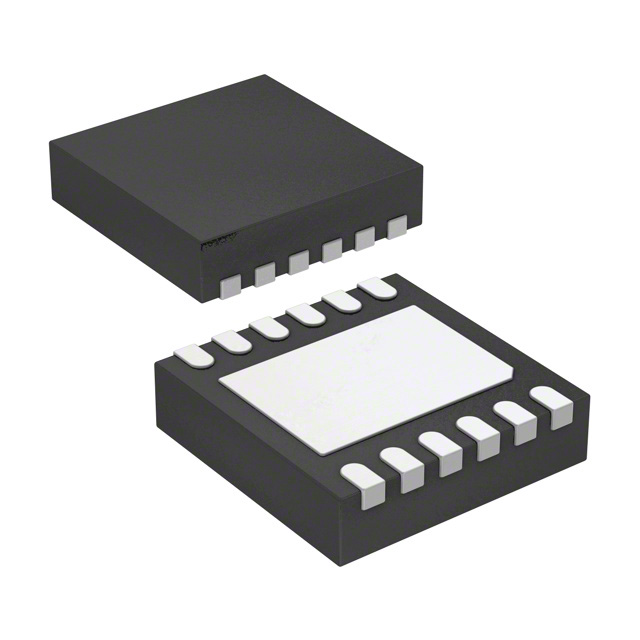

PAM2306AYPKE
IC REG BUCK 1.8/3.3V UDFN303012Manufacturer: Diodes Incorporated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Diodes Incorporated PAM2306AYPKE is a fixed output voltage, step-down (buck) switching regulator. This device provides two independent positive fixed output voltage options: 1.8V and 3.3V, each capable of delivering up to 1A of output current. The PAM2306AYPKE operates with a switching frequency of 1.5MHz, contributing to its compact solution size. It features integrated synchronous rectification for improved efficiency. The input voltage range is from 2.5V to 5.5V. This component is housed in a 12-UFDFN exposed pad package, suitable for surface mounting. Applications for this regulator include portable electronics, and power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.5MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | U-DFN3030-12 |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 1.8V, 3.3V |
