PAM2306AYPBK

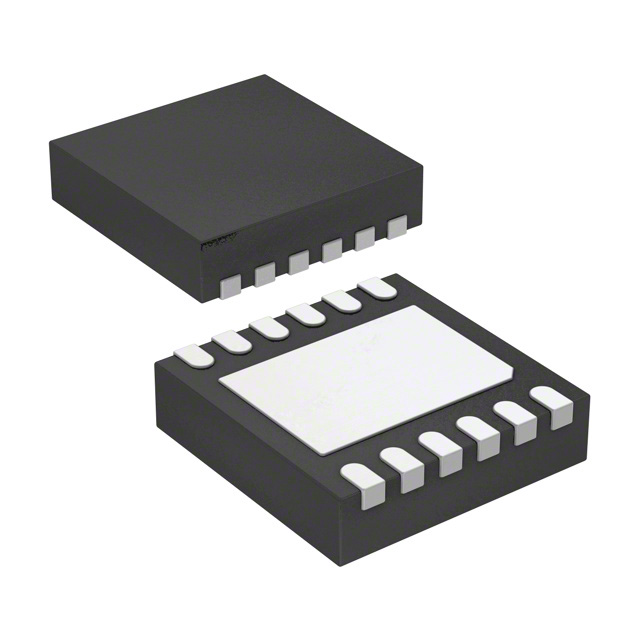

IC REG BUCK 1.2V/3.3V DL 12WDFNManufacturer: Diodes Incorporated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Diodes Incorporated PAM2306AYPBK is a dual-output, synchronous buck switching regulator. This device offers fixed positive outputs of 1.2V and 3.3V, each capable of delivering up to 1A. Operating with an input voltage range of 2.5V to 5.5V, the PAM2306AYPBK features a high switching frequency of 1.5MHz, enabling the use of smaller passive components. The integrated synchronous rectifier eliminates the need for an external Schottky diode, improving efficiency and reducing component count. Supplied in a 12-WFDFN exposed pad package, this IC is suitable for surface-mount applications. Its robust design makes it a strong candidate for power management in portable electronics, industrial control systems, and automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.5MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | W-DFN3030-12 |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 1.2V, 3.3V |
