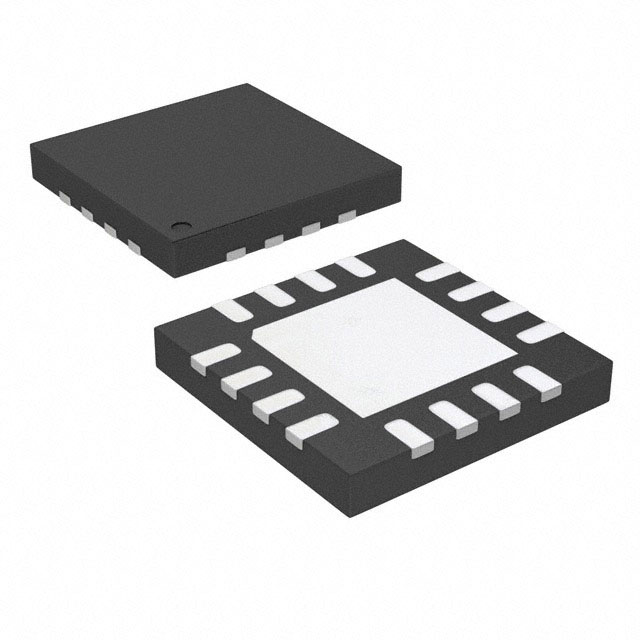

PAM2303AJEADJR
IC REG BUCK ADJ 3A 16QFNManufacturer: Diodes Incorporated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Diodes Incorporated PAM2303AJEADJR is a highly efficient, synchronous buck switching regulator IC designed for demanding power management applications. This positive adjustable output device offers a wide input voltage range from 2.7V to 5.5V and can deliver up to 3A of output current. Featuring an adjustable output voltage from 0.6V up to the input voltage, the PAM2303AJEADJR operates at a 1.5MHz switching frequency, enabling the use of smaller external components. Its 16-VFQFN exposed pad package ensures excellent thermal performance. The integrated synchronous rectifier eliminates the need for an external Schottky diode, simplifying the bill of materials and improving efficiency. This component is well-suited for use in portable electronics, industrial automation, and battery-powered systems where compact size and high power density are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 54 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.5MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 16-QFN (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.6V |
