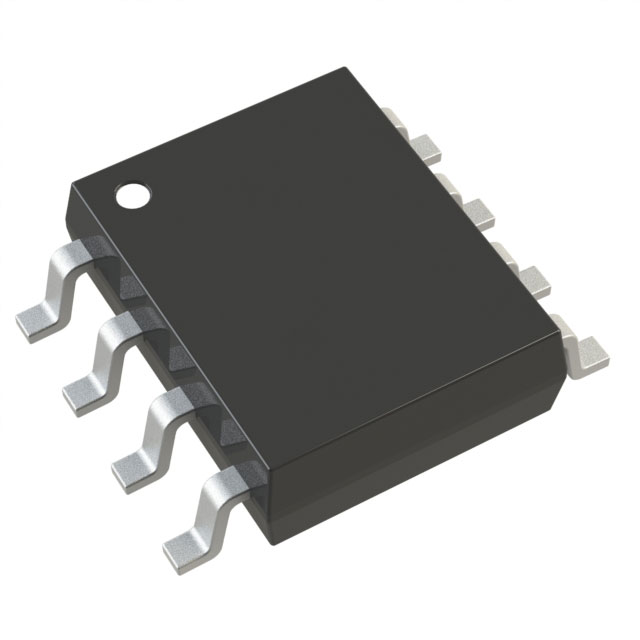

LSP5503L-R8A
IC REG BUCK ADJUSTABLE 3A 8SOPManufacturer: Diodes Incorporated
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Diodes Incorporated LSP5503L-R8A is a 3A adjustable output buck switching regulator. This single-output device utilizes a step-down topology and operates with a switching frequency of 340kHz. It supports input voltages ranging from 4.5V to 23V, with an adjustable output voltage from 0.925V up to 18.4V. The regulator features a synchronous rectifier for improved efficiency. Housed in an 8-SOIC package with an exposed pad, this component is designed for surface mounting. The LSP5503L-R8A is suitable for applications in industrial and consumer electronics. It operates within an ambient temperature range of -20°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 340kHz |
| Voltage - Input (Max) | 23V |
| Topology | Buck |
| Supplier Device Package | 8-SOP-EP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 18.4V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.925V |
