AUR9718AUGD
IC REG BUCK ADJ 1.5A 6DFNManufacturer: Diodes Incorporated
Categories: DC DC Switching Regulators
Quality Control: Learn More

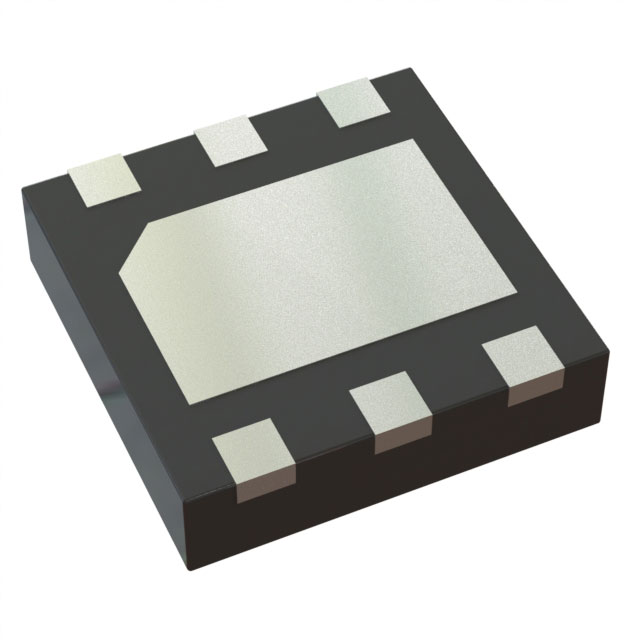

The Diodes Incorporated AUR9718AUGD is a highly efficient, synchronous buck switching regulator designed for demanding power management applications. This adjustable output device, capable of delivering up to 1.5A, operates with a 1.5MHz switching frequency, enabling compact inductor selection and reduced output ripple. Its input voltage range spans from 2.7V to 5.5V, with a minimum output voltage of 0.8V and a maximum of 4.95V. The AUR9718AUGD features a 6-WDFN exposed pad package (3x3mm) for effective thermal management and surface mount assembly. Its integrated synchronous rectifier ensures high efficiency across various load conditions. This component is well-suited for use in consumer electronics, portable devices, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 80°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.5MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 6-DFN (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 4.95V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.8V |
Request a Quote
