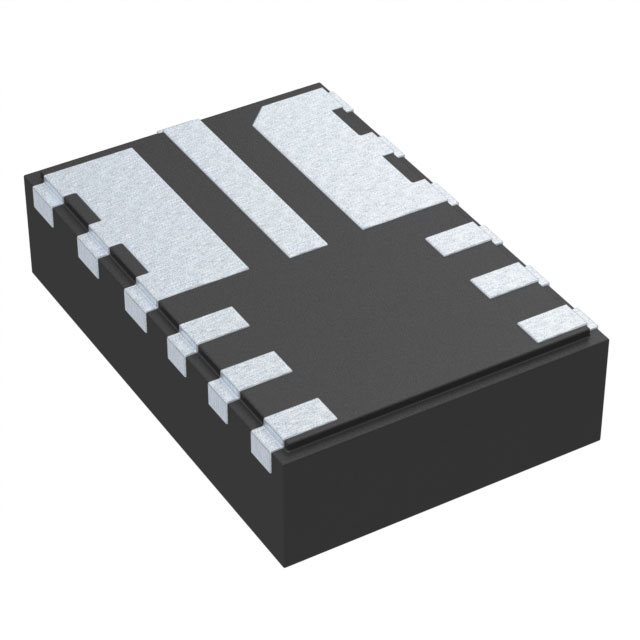

AP63357QZV-7
IC REG BUCK ADJ 3.5A 13DFNManufacturer: Diodes Incorporated
Categories: DC DC Switching Regulators
Quality Control: Learn More
This Diodes Incorporated AP63357QZV-7 is a synchronous buck converter IC designed for high-efficiency power conversion. It supports an adjustable output voltage ranging from 0.8V up to 31V, with a maximum output current of 3.5A. The device operates with a switching frequency of 450kHz and features an input voltage range of 3.8V to 32V. Its adjustable output capability makes it suitable for applications requiring precise voltage regulation in automotive systems. The AP63357QZV-7 is AEC-Q100 qualified and packaged in a 13-PowerVFDFN (V-DFN3020-13/SWP Type A1) with wettable flanks for robust surface mounting, supplied on tape and reel. This component is typically integrated into automotive infotainment, advanced driver-assistance systems (ADAS), and battery management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 13-PowerVFDFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3.5A |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 450kHz |
| Voltage - Input (Max) | 32V |
| Topology | Buck |
| Supplier Device Package | V-DFN3020-13/SWP (Type A1) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 31V |
| Voltage - Input (Min) | 3.8V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
