AP3405SHE-7
IC REG BUCK ADJ 600MA UDFN2020-8Manufacturer: Diodes Incorporated
Categories: DC DC Switching Regulators
Quality Control: Learn More

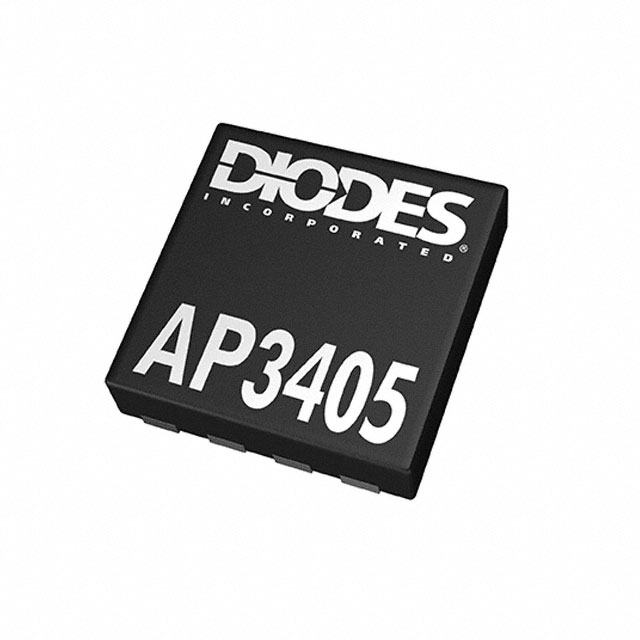

The Diodes Incorporated AP3405SHE-7 is a synchronous buck switching regulator IC designed for efficient power conversion. This device features a positive adjustable output voltage, configurable from 0.7V up to 5.5V, and can deliver up to 600mA of output current. Operating with input voltages ranging from 2.3V to 5.5V, it is suitable for applications requiring a compact and high-performance step-down solution. The regulator operates at a switching frequency of 2MHz, enabling the use of small external components and reducing overall solution size. Its synchronous rectification design enhances efficiency by minimizing conduction losses. The AP3405SHE-7 is housed in an 8-UFDFN exposed pad package, facilitating effective thermal management for surface mount applications. This component finds utility in portable electronics, consumer devices, and power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 600mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | U-DFN2020-8 (Type E) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 0.7V |
