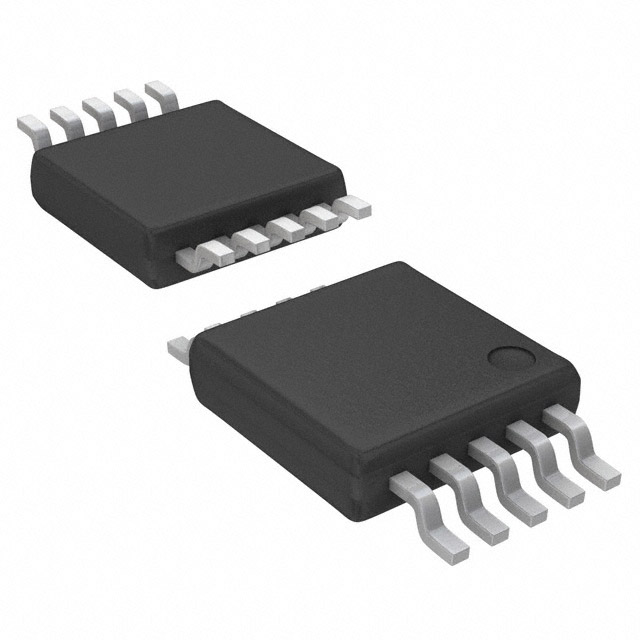

AP3201AMHTR-G1
IC REG BUCK ADJ 2A 10HMSOPManufacturer: Diodes Incorporated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Diodes Incorporated AP3201AMHTR-G1 is a 2A adjustable output buck switching regulator designed for efficient power conversion. This device operates with an input voltage range of 4.75V to 18V, providing a stable adjustable output from 0.92V up to 16.2V. Featuring a 380kHz switching frequency, it employs a non-synchronous buck topology. The AP3201AMHTR-G1 is supplied in a 10-pin HMSOP package, suitable for surface mounting. Its robust performance makes it relevant for applications in consumer electronics, industrial control, and automotive systems requiring compact and reliable power regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 380kHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck |
| Supplier Device Package | 10-HMSOP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 16.2V |
| Voltage - Input (Min) | 4.75V |
| Voltage - Output (Min/Fixed) | 0.92V |
