AP1507-D5-13

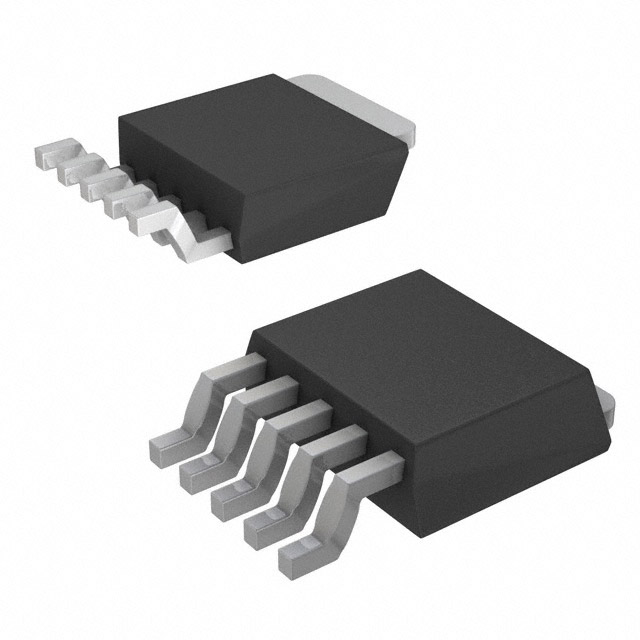

IC REG BUCK ADJ 3A TO252-5Manufacturer: Diodes Incorporated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Diodes Incorporated AP1507-D5-13 is a step-down switching regulator IC designed for efficient power conversion. This adjustable positive output regulator operates with an input voltage range of 4.5V to 22V and can deliver up to 3A of output current. Featuring a fixed switching frequency of 150kHz, it utilizes a buck topology without a synchronous rectifier. The device is housed in a TO-252-5 package, suitable for surface mounting. The AP1507-D5-13 is commonly employed in power management applications across various industries, including consumer electronics, industrial automation, and telecommunications. It provides a flexible 1.23V to 18V adjustable output voltage.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 54 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 150kHz |
| Voltage - Input (Max) | 22V |
| Topology | Buck |
| Supplier Device Package | TO-252-5 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 18V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 1.23V |
