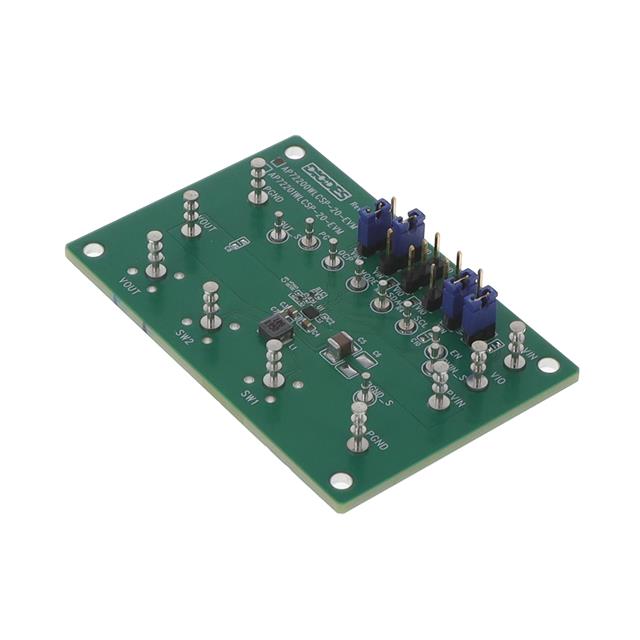

AP72200WLCSP-20-EVM
EVAL BOARD FOR AP72200Manufacturer: Diodes Incorporated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More
AP72200 - 1 Non-Isolated Output DC/DC, Step Up or Down Evaluation Board
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 2.6V ~ 5.14V |
| Voltage - Input | 2.3V ~ 5.5V |
| Current - Output | 2A |
| Contents | Board(s) |
| Frequency - Switching | 2.5MHz |
| Regulator Topology | Buck-Boost |
| Utilized IC / Part | AP72200 |
| Main Purpose | DC/DC, Step Up or Down |
| Outputs and Type | 1 Non-Isolated Output |
