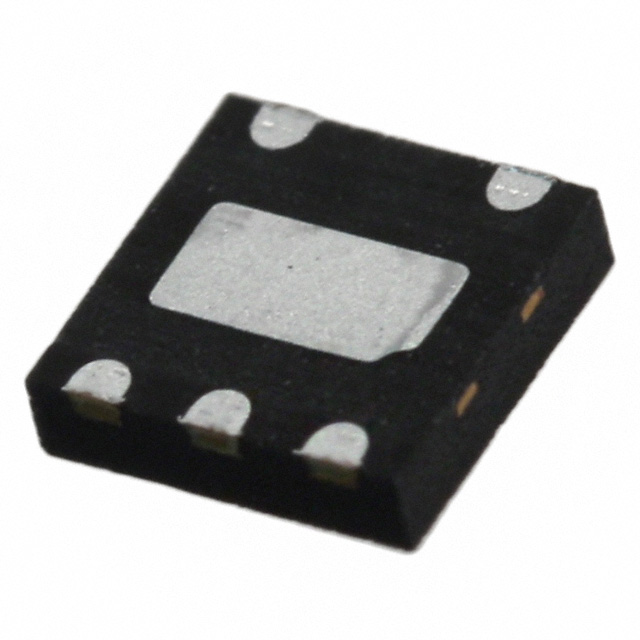

ZXCT1012DAATA
IC CURRENT MONITOR 2.5% 5TDFNManufacturer: Diodes Incorporated
Categories: Current Regulation/Management
Quality Control: Learn More
The Diodes Incorporated ZXCT1012DAATA is a high-side current monitor IC designed for precise current sensing applications. Featuring a ±2.5% accuracy, this component is ideal for monitoring current flow in demanding environments. Its integrated regulator functionality and 2mA output current make it suitable for various power management tasks. The device operates within a voltage input range of 2.5V to 20V and boasts a wide operating temperature range of -40°C to 85°C. Engineered for surface-mount assembly, it is supplied in a compact 5-WDFN exposed pad package (3x3mm). This component finds application in sectors such as automotive, industrial control, and power supply systems where accurate current measurement is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 5-WDFN Exposed Pad |
| Sensing Method | High-Side |
| Mounting Type | Surface Mount |
| Function | Current Monitor |
| Voltage - Input | 2.5V ~ 20V |
| Current - Output | 2mA |
| Accuracy | ±2.5% |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 5-TDFN (3x3) |
Request a Quote
