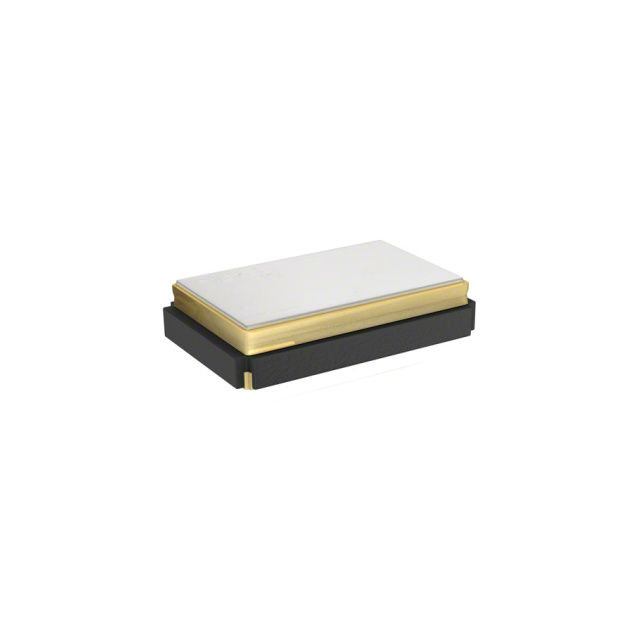

XK16327004
CRYSTAL 32.7680KHZ SURFACE MOUNTManufacturer: Diodes Incorporated
Categories: Crystals
Quality Control: Learn More
Diodes Incorporated XK16 Series 32.768 kHz tuning fork crystal, part number XK16327004. This surface mount component, housed in a 2-SMD, No Lead package, offers a fundamental operating mode. It features an Equivalent Series Resistance (ESR) of 90 kOhms and operates within a temperature range of -40°C to 85°C. The compact dimensions are 0.063" L x 0.039" W (1.60mm x 1.00mm) with a maximum seated height of 0.020" (0.50mm). This crystal is commonly utilized in real-time clock (RTC) modules, microcontrollers, and automotive applications where precise timekeeping is critical. Packaged in Tape & Reel (TR).
Additional Information
Series: XK16RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Load Capacitance | - |
| Size / Dimension | 0.063"" L x 0.039"" W (1.60mm x 1.00mm) |
| Mounting Type | Surface Mount |
| Type | kHz Crystal (Tuning Fork) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | - |
| Frequency Tolerance | - |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.020"" (0.50mm) |
| ESR (Equivalent Series Resistance) | 90 kOhms |
| Frequency | 32.768 kHz |
