G93270004
CRYSTAL 32.7680KHZ 12.5PF SMDManufacturer: Diodes Incorporated
Categories: Crystals
Quality Control: Learn More

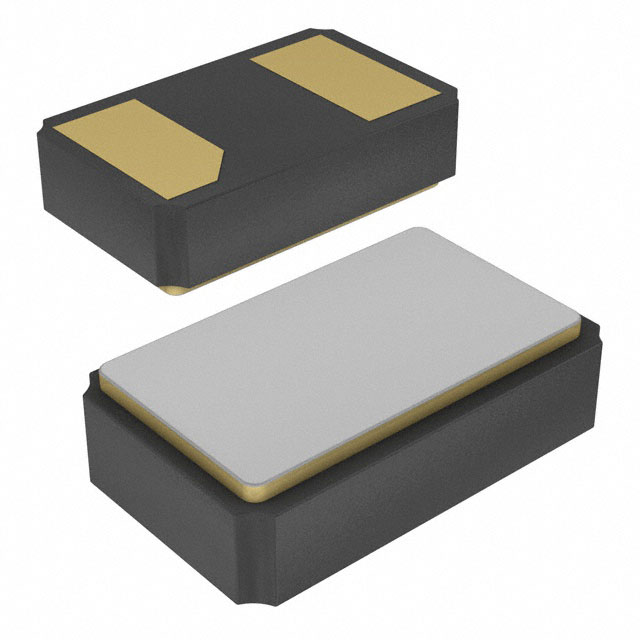

Diodes Incorporated SaRonix-eCera™ G9 series crystal, part number G93270004. This kHz crystal (tuning fork) operates at a fundamental frequency of 32.768 kHz with a frequency tolerance of ±20ppm. It features a load capacitance of 12.5pF and an Equivalent Series Resistance (ESR) of 90 kOhms. The component is housed in a 2-SMD, No Lead package with dimensions of 2.00mm x 1.20mm and a maximum seated height of 0.60mm. Designed for surface mounting, it operates within a temperature range of -40°C to 85°C. This crystal is commonly utilized in consumer electronics, industrial control systems, and IoT devices requiring precise timekeeping. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: SaRonix-eCera™ G9RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Load Capacitance | 12.5pF |
| Size / Dimension | 0.079"" L x 0.047"" W (2.00mm x 1.20mm) |
| Mounting Type | Surface Mount |
| Type | kHz Crystal (Tuning Fork) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | - |
| Frequency Tolerance | ±20ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.024"" (0.60mm) |
| ESR (Equivalent Series Resistance) | 90 kOhms |
| Frequency | 32.768 kHz |
