PI7C9X1170CZDE
IC SPI TO UART BRDG 24TQFN 490PCManufacturer: Diodes Incorporated
Categories: Controllers
Quality Control: Learn More
Diodes Incorporated PI7C9X1170CZDE is a high-performance bridge IC facilitating seamless communication between I2C and UART protocols. This component, housed in a compact 24-TQFN (4x4) package, offers a robust solution for interfacing microcontrollers and peripherals across various industrial and consumer electronics applications. With an operating voltage range of 1.62V to 3.63V and a low supply current of 6mA, it is well-suited for power-sensitive designs. The PI7C9X1170CZDE supports bidirectional data transfer, enabling efficient translation between I2C master/slave and UART serial communication standards. Its versatile functionality makes it an ideal choice for applications requiring robust serial data conversion and system integration.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 24-VFQFN Exposed Pad |
| Function | Bridge, I2C/SPI to UART |
| Interface | UART |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.62V ~ 3.63V |
| Current - Supply | 6mA |
| Protocol | I2C |
| Standards | - |
| Supplier Device Package | 24-TQFN (4x4) |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

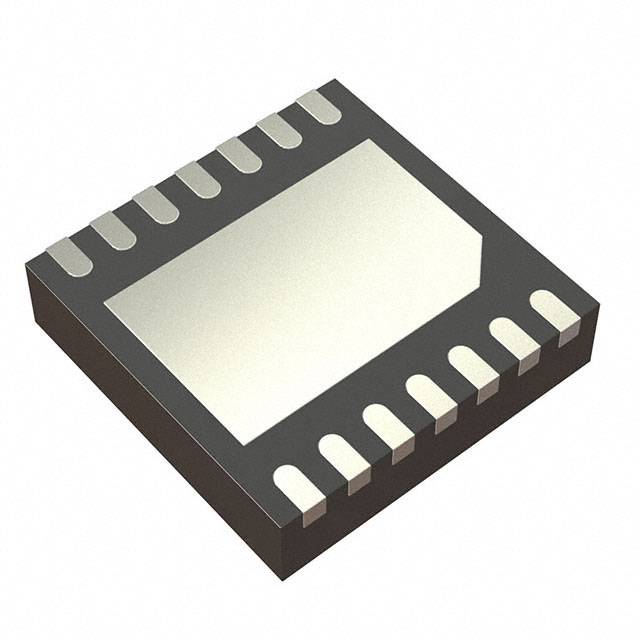

AP43771FBZ-13
