AZV331KSTR-G1
IC COMPARATOR 1 GEN PUR SC70-5Manufacturer: Diodes Incorporated
Categories: Comparators
Quality Control: Learn More
Diodes Incorporated AZV331KSTR-G1 is a general-purpose, single-element comparator featuring an open-collector output. This device operates over a voltage range of 2.5V to 5.5V and offers a typical input bias current of 0.25µA at 5V. The maximum quiescent current is 120µA, with a typical output current of 84mA at 5V. The SC-70-5 package is designed for surface mounting and is supplied in tape and reel. Key specifications include a maximum input offset voltage of 7mV at 5V and a maximum propagation delay of 450ns. This comparator is suitable for applications in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Output Type | Open-Collector |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Single/Dual (±) | 2.5V ~ 5.5V |
| Supplier Device Package | SC-70-5 |
| Propagation Delay (Max) | 450ns |
| Current - Quiescent (Max) | 120µA |
| Voltage - Input Offset (Max) | 7mV @ 5V |
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 84mA @ 5V |
| CMRR, PSRR (Typ) | - |
| Hysteresis | - |
Request a Quote
Clients Also Buy

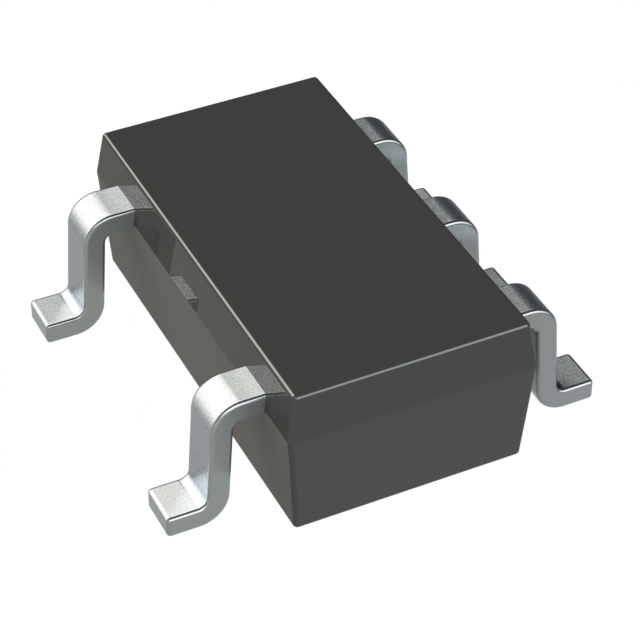

AS331KTR-G1
