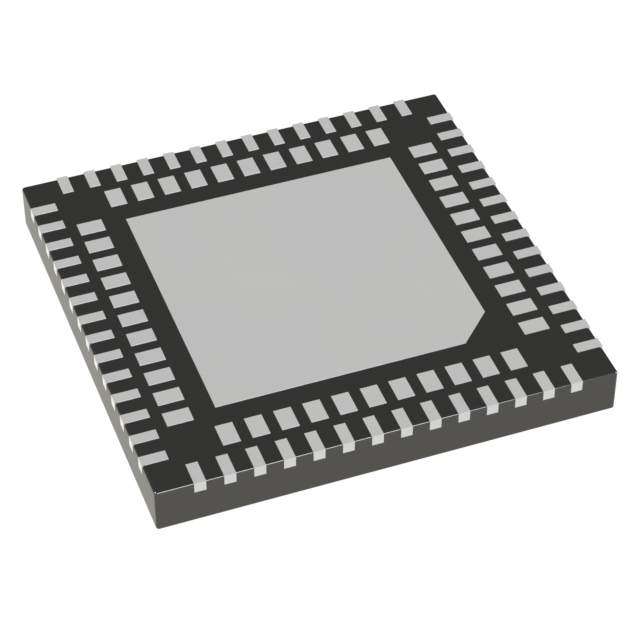

PI6CG330440AZUDIEX
CLOCK GENERATOR U-QFN8080-100 T&Manufacturer: Diodes Incorporated
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
The Diodes Incorporated PI6CG330440AZUDIEX is a high-performance clock generator designed for demanding applications. This single-circuit device operates with a maximum frequency of 100MHz, accepting HCSL or Crystal inputs and providing HCSL outputs. Featuring a PLL, it offers a flexible 2:19 input-to-output ratio. The PI6CG330440AZUDIEX is housed in a 100-UQFN (8x8) package with an exposed pad, suitable for surface mounting. It operates within a temperature range of -40°C to 85°C and requires a supply voltage between 3.135V and 3.465V. This component is commonly utilized in networking, telecommunications, and computing systems where precise clock distribution is critical. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 100-UFQFN Dual Rows, Exposed Pad |
| Mounting Type | Surface Mount |
| Output | HCSL |
| Frequency - Max | 100MHz |
| Type | Clock Generator |
| Input | HCSL, Crystal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:19 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 100-UQFN (8x8) |
| PLL | Yes |
| Divider/Multiplier | No/No |
| Number of Circuits | 1 |
