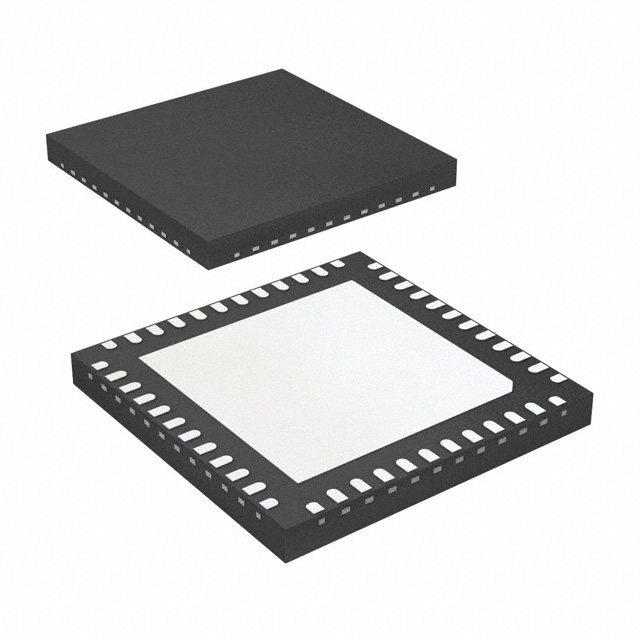

PI6CG188Q1ZLQEX
CLOCK GENERATOR V-QFN6060-48 T&RManufacturer: Diodes Incorporated
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Diodes Incorporated PI6CG188Q1ZLQEX is a sophisticated clock generator IC designed for applications requiring precise timing. This component features a single circuit with a maximum frequency of 100MHz, accepting CMOS and Crystal inputs. Its output capabilities include HCSL, with a configurable 1:8 ratio. The device operates reliably within a temperature range of -40°C to 105°C (TA) and requires a supply voltage between 1.7V and 1.9V. Packaged in a 48-VFQFN Exposed Pad (6x6mm), the PI6CG188Q1ZLQEX is supplied in Tape & Reel. This clock generator is integral to various high-performance systems, including networking, computing, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | HCSL |
| Frequency - Max | 100MHz |
| Type | Clock Generator |
| Input | CMOS, Crystal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Voltage - Supply | 1.7V ~ 1.9V |
| Ratio - Input:Output | 1:8 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 48-TQFN (6x6) |
| PLL | Yes |
| Divider/Multiplier | No/No |
| Number of Circuits | 1 |
