PI6C49S1510ZDIE9
IC CLK BUFFER 3:11 1.5GHZ 48TQFNManufacturer: Diodes Incorporated
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Diodes Incorporated PI6C49S1510ZDIE9 is a high-performance clock distribution buffer featuring a 3:11 input to output ratio with a maximum operating frequency of 1.5 GHz. This device supports a wide range of input signal types including LVCMOS, LVTTL, and crystal oscillators, and offers flexible output signaling options such as HCSL, LVCMOS, LVDS, and LVPECL. Designed for surface mounting, it is housed in a compact 48-TQFN (7x7) package with an exposed pad for enhanced thermal management. The PI6C49S1510ZDIE9 operates across a temperature range of -40°C to 85°C with a supply voltage range of 2.375V to 3.465V. This component is well-suited for demanding applications in networking, telecommunications, and computing industries requiring precise clock signal distribution and synchronization.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |

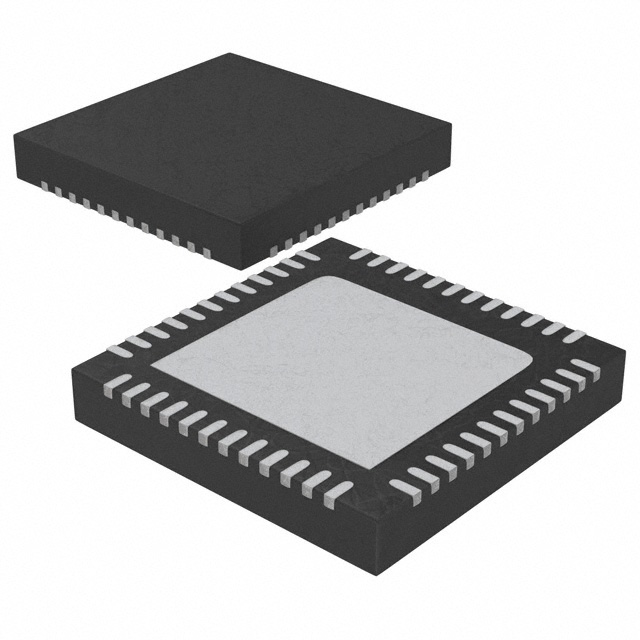

| Package / Case | 48-VFQFN Exposed Pad |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | HCSL, LVCMOS, LVDS, LVPECL |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Input | LVCMOS, LVTTL, Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.375V ~ 3.465V |
| Ratio - Input:Output | 3:11 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 48-TQFN (7x7) |
| Frequency - Max | 1.5 GHz |
