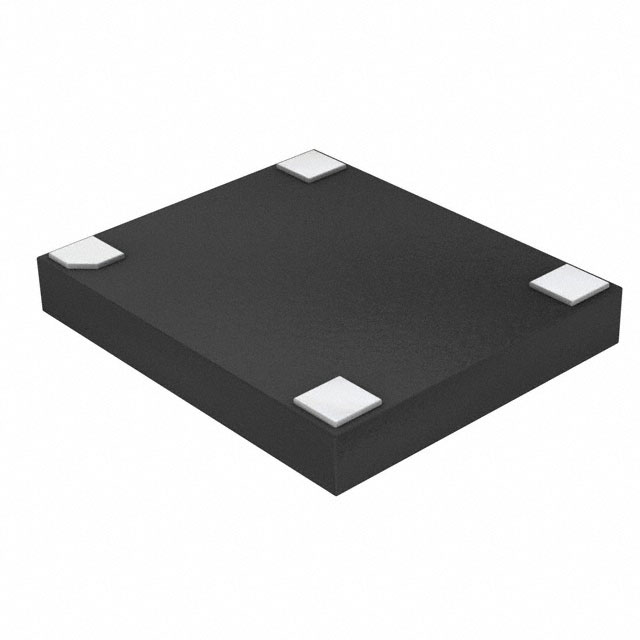

SDM1L30BLP-13
BRIDGE RECT 1P 30V 1A DFN5060-4Manufacturer: Diodes Incorporated
Categories: Bridge Rectifiers
Quality Control: Learn More
Diodes Incorporated SDM1L30BLP-13 is a single-phase Schottky bridge rectifier designed for robust power supply applications. This surface-mount component, housed in a 4-VDFN package (V-DFN5060-4), offers a maximum reverse voltage of 30V and an average rectified forward current handling capability of 1A. It features a low forward voltage drop of 420mV at 1A, characteristic of Schottky technology, ensuring efficient operation. The device exhibits a reverse leakage current of 1mA at 30V and operates across a wide temperature range of -55°C to 150°C (TJ). This component is commonly utilized in consumer electronics, industrial control systems, and automotive power management. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-VDFN |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Schottky |
| Supplier Device Package | V-DFN5060-4 |
| Voltage - Peak Reverse (Max) | 30 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 420 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 30 V |
