RS605
BRIDGE RECT 1PHASE 600V 6A RS-6Manufacturer: Diodes Incorporated
Categories: Bridge Rectifiers
Quality Control: Learn More

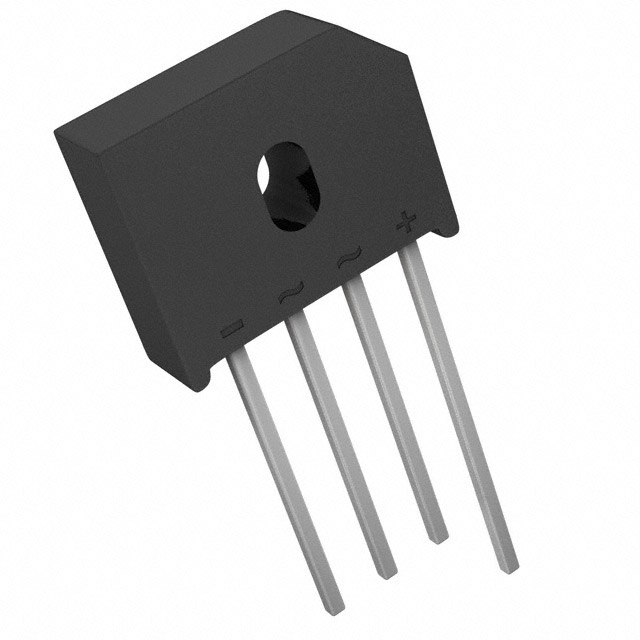

Diodes Incorporated RS605 is a single-phase bridge rectifier designed for standard recovery applications. This through-hole component, housed in an RS-6 package, offers a maximum reverse voltage of 600V and an average rectified forward current (Io) of 6A. Its forward voltage (Vf) is rated at a maximum of 1V at 3A, with a low reverse leakage current of 10 µA at 600V. The operating temperature range is -55°C to 125°C (TJ). This rectifier is suitable for use in power supply units, lighting systems, and industrial control applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SIP, RS-6 |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | RS-6 |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 6 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
