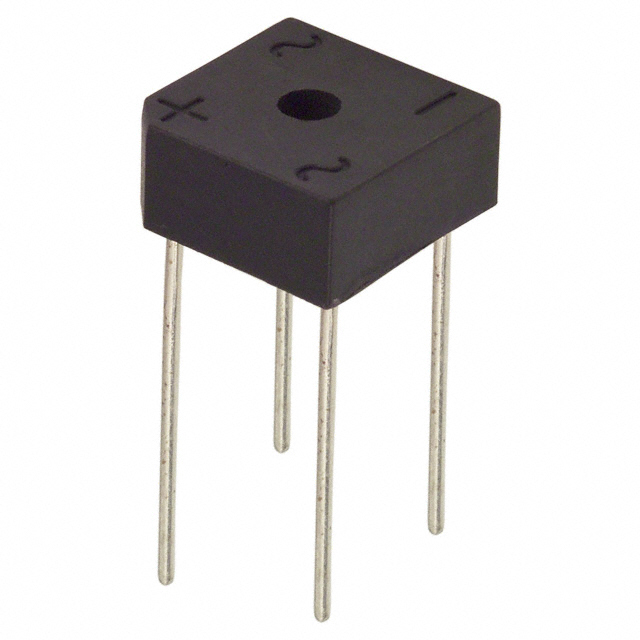

PB61
BRIDGE RECT 1PHASE 100V 6A PB-6Manufacturer: Diodes Incorporated
Categories: Bridge Rectifiers
Quality Control: Learn More
Diodes Incorporated PB61 is a single-phase bridge rectifier designed for standard applications. This through-hole component features a maximum repetitive peak reverse voltage of 100 V and an average rectified forward current (Io) of 6 A. The forward voltage drop (Vf) is a maximum of 1.1 V at 3 A, with a reverse leakage current of 10 µA at 100 V. The PB-6 package is suitable for through-hole mounting. Operating temperature ranges from -65°C to 150°C (TJ). This device is commonly utilized in power supply circuits and industrial automation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Square, PB-6 |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | PB-6 |
| Voltage - Peak Reverse (Max) | 100 V |
| Current - Average Rectified (Io) | 6 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 100 V |
