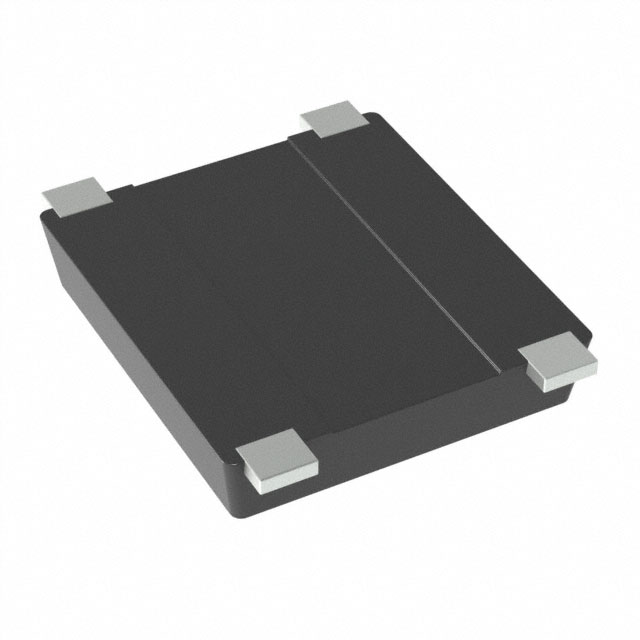

MSB10M-13
BRIDGE RECT 1PHASE 1KV 1A 4MSBManufacturer: Diodes Incorporated
Categories: Bridge Rectifiers
Quality Control: Learn More
Diodes Incorporated MSB10M-13 is a single-phase bridge rectifier designed for standard applications. This surface mount component features a 1 kV peak reverse voltage and a maximum forward voltage of 1.05 V at 1 A. It offers an average rectified current of 1 A with a low reverse leakage of 5 µA at 1000 V. The MSB10M-13 operates across a temperature range of -55°C to 150°C. Packaged in a 4-MSB (4-SMD, Flat Leads) configuration, suitable for tape and reel packaging, this device is utilized in power supply circuits and general rectification tasks within industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | 4-MSB |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
