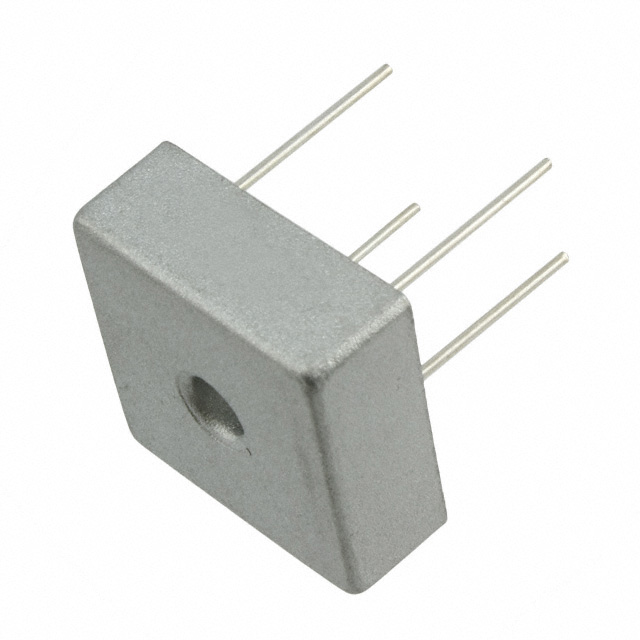

MB156W
BRIDGE RECT 1PHASE 600V 15A MB-WManufacturer: Diodes Incorporated
Categories: Bridge Rectifiers
Quality Control: Learn More
Diodes Incorporated MB156W is a single-phase bridge rectifier designed for robust power conversion applications. This through-hole component features a standard recovery technology, offering a maximum forward voltage drop of 1.1 V at 7.5 A. With a peak reverse voltage rating of 600 V and an average rectified current capability of 15 A, it ensures reliable performance in demanding environments. The device exhibits a low reverse leakage current of 10 µA at 600 V, contributing to efficient operation. Operating within a temperature range of -55°C to 150°C (TJ), the MB156W is housed in a 4-square MB-W package, commonly utilized in industrial power supplies and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Square, MB-W |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | MB-W |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 15 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 7.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
