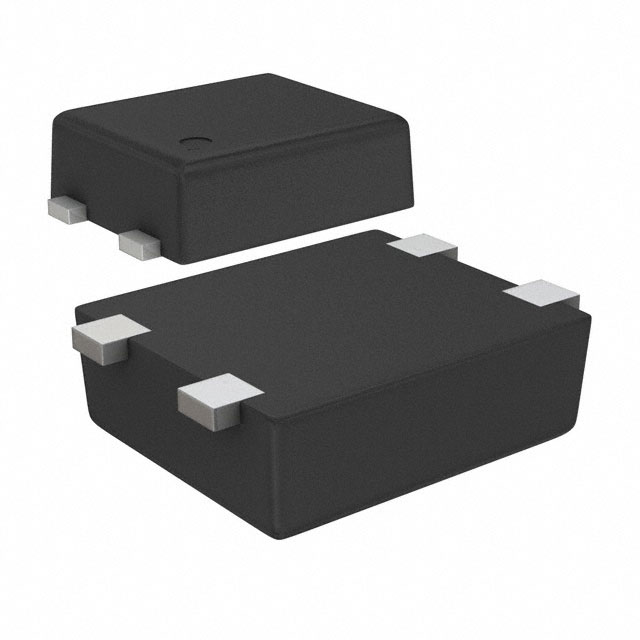

LBS10-13
BRIDGE RECT 1P 1KV 1A DFN5564-4Manufacturer: Diodes Incorporated
Categories: Bridge Rectifiers
Quality Control: Learn More
Diodes Incorporated LBS10-13 is a single-phase bridge rectifier designed for surface mount applications. This component delivers a reverse voltage rating of 1 kV and a forward voltage drop of 1.1 V at 1 A. It features a low reverse leakage current of 5 µA at 1000 V. The LBS10-13 is housed in a T-DFN5564-4 package, specifically a 4-SMD, Flat Leads configuration, and is supplied on tape and reel for automated assembly. Operating across a temperature range of -55°C to 150°C (TJ), this standard technology rectifier is suitable for use in power supply, industrial control, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | T-DFN5564-4 |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
