BHDS1100
PLANAR SCHOTTKY RECTIFIER HDS T&Manufacturer: Diodes Incorporated
Categories: Bridge Rectifiers
Quality Control: Learn More

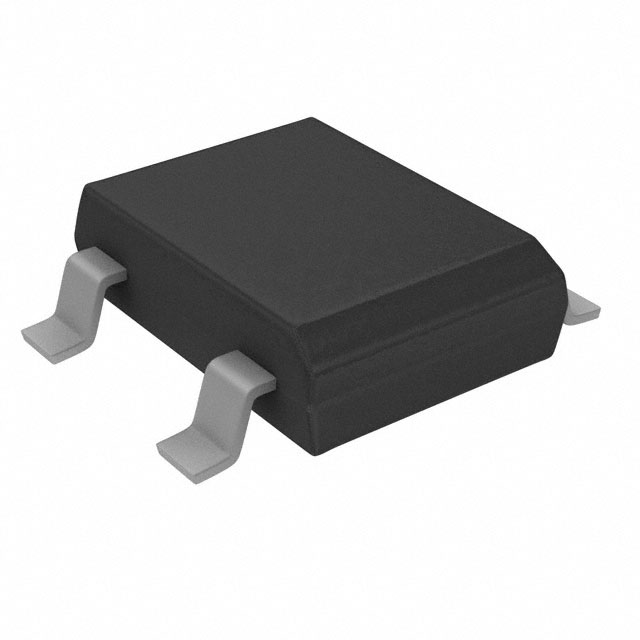

Diodes Incorporated BHDS1100 is a single-phase planar Schottky bridge rectifier. This surface mount component, packaged in an HDS (4-SMD, Gull Wing) configuration on tape and reel, offers a peak reverse voltage rating of 100 V. With an average rectified current capability of 1 A, it exhibits a low forward voltage drop of 850 mV at 1 A and a reverse leakage current of 50 µA at its maximum reverse voltage. The operating temperature range spans from -55°C to 150°C. This device is suitable for applications in power supplies, voltage clamping, and general-purpose rectification across various industrial and consumer electronics segments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Schottky |
| Supplier Device Package | HDS |
| Voltage - Peak Reverse (Max) | 100 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 100 V |
