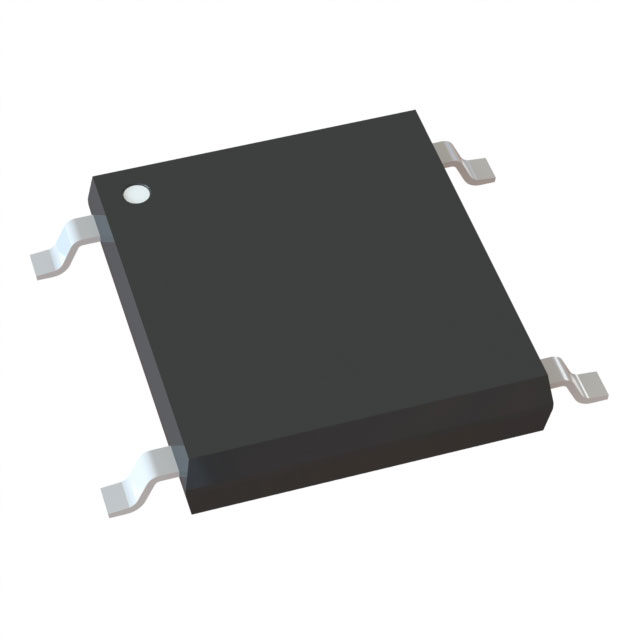

BABS260
PLANAR SCHOTTKY RECTIFIER ABS/SOManufacturer: Diodes Incorporated
Categories: Bridge Rectifiers
Quality Control: Learn More
Diodes Incorporated BABS260 is a single-phase planar Schottky bridge rectifier. This surface mount component, housed in an ABS package with gull-wing leads, offers a peak reverse voltage of 60 V. It features an average rectified current (Io) of 2 A and a low reverse leakage current of 20 µA at 60 V. The maximum forward voltage drop (Vf) is 720 mV at 2 A. Operating across a temperature range of -55°C to 150°C (TJ), the BABS260 is suitable for applications in power supplies, industrial controls, and consumer electronics. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Schottky |
| Supplier Device Package | ABS |
| Voltage - Peak Reverse (Max) | 60 V |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 720 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 60 V |
